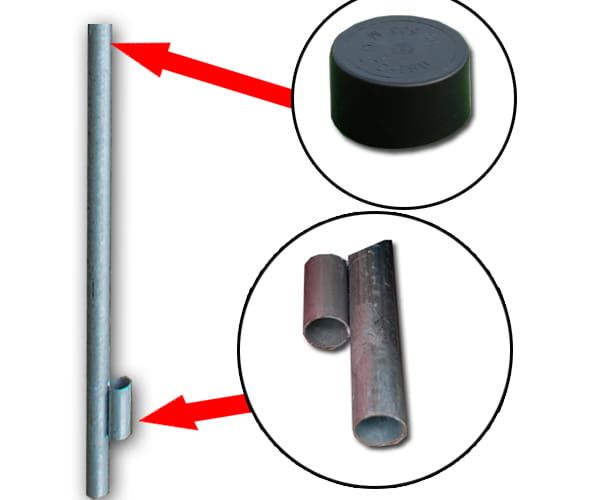

Sign: post 3.5 linear meters fi 60.3 mm with an anchor and a cap

Sign post 3.5 linear meters fi 60.3 mm with an anchor and a cap



Technical data of the post:

Outer diameter: Ø 60.3 mm

Overall length: 3500 mm

Steel grade: DX51D + Z275

Pipe protected with a hot-dip zinc coating with a thickness of 275 g / m2. ~ 19.5 μm

Silicone rain cap.

Welded concreting anchor.



The correct length of the post for the road sign should be selected according to the total length:

- post concreting depth,

- 2.2 m long from the ground to the lower edge of the first sign / board,

- total height of all mounted signs / boards on the post.



Length of 3.5 m, selected for installation, e.g.

- a single small road mark, maintaining the height of the gauge from the lower edge of the mark to the ground 2.2 m + height of the mark 0.6 m + length for concreting 0.7 m
